Heavy Duty Robotic Arm Load Kuka Arm Cost 500kg In Mechanical Processing Polishing

Product Categories
Shanghai YoungYou Intelligence Co.,Ltd.
Contact Now

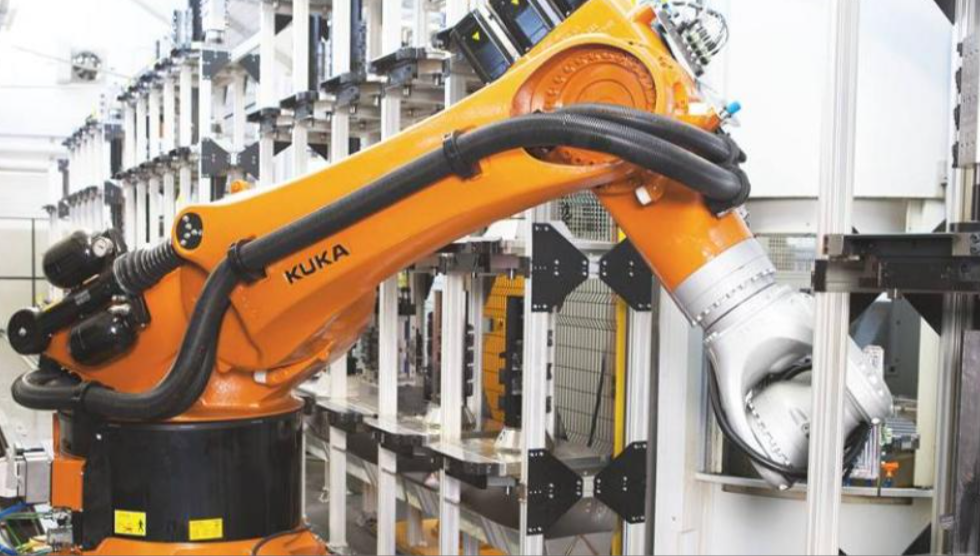

Heavy Duty Robotic Arm Load Kuka Arm Cost 500kg In Mechanical Processing Polishing

  • 1
  • 2
  • 3

Brand Name : KUKA

Model Number : KR 500 R2830

Certification : CE

Place of Origin : GERMANY

MOQ : 1

Price : 30000

Payment Terms : L/C D/A

Supply Ability : 200SETS/MONTH

Delivery Time : 6-8 WEEKS

Packaging Details : Foam fixation/carton packaging/wooden box fixation

Payload : 500 kg

Farthest reachable distance : 2845mm

Structure type : Standard

Execution environment : Standard

Installation position : Floor

Protect : IP65

Contact Now

The Application of a Heavy Duty 500kg Kuka Robot in Mechanical Processing and Polishing



KUKA milling robot making sculptures at the Babysburg studio
A KUKA KR QUANTEC ultra series milling robot makes sculptures with hard foam in Art Department Studio Babelsberg GmbH. In this process, the robot is used as a separately configurable machine tool, independently and automatically completing all work steps. In addition, CNC milling ensures the completion of precise three-dimensional operations.



KUKA robots polish and grind kitchen knives for the Taiwanese brand Atlantic Chef.
Due to the use of multiple KUKA robots, Atlantic Chef's kitchen knives can be accurately ground.





Company Product Supply

ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China










Basic Data Maximum payload
611 kg
Maximum reach
2826 mm
Mounting position
Floor
Pose repeatability (ISO 9283)
0.08 mm
Number of axes
6
Ambient temperature during operation
10 °C to 55 °C (283 K to 328 K)
Ambient temperature during stor./transp.
-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)
IP65
Prot. rating, in-line wrist (IEC 60529)
IP65
Motion Range A1
±185 °
A2
-130 ° / 20 °
A3
-100 ° / 144 °
A4
±350 °
A5
±120 °
A6
±350 °
Field of application Applying/Painting/Glueing/Assembly/ Cutting/
Separation/ Handling/ Laser Welding/ Machining/
Measuring/Inspection/ Palletizing/packaging/
Spot Welding







Heavy Duty Robotic Arm Load Kuka Arm Cost 500kg In Mechanical Processing PolishingHeavy Duty Robotic Arm Load Kuka Arm Cost 500kg In Mechanical Processing PolishingHeavy Duty Robotic Arm Load Kuka Arm Cost 500kg In Mechanical Processing Polishing



Packaging and Transportation



Heavy Duty Robotic Arm Load Kuka Arm Cost 500kg In Mechanical Processing PolishingHeavy Duty Robotic Arm Load Kuka Arm Cost 500kg In Mechanical Processing Polishing
