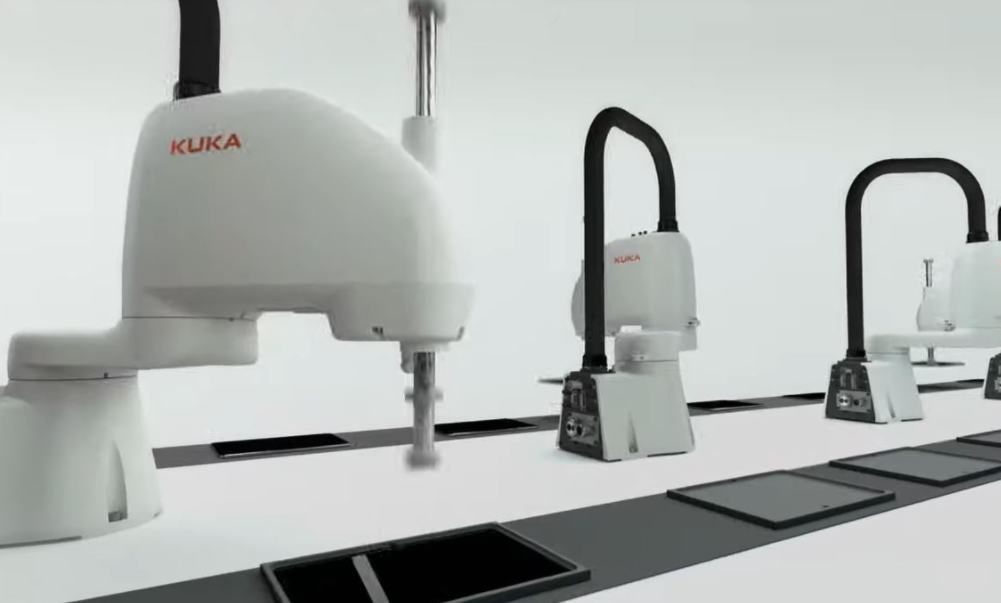

The compact and precise KR SCARA robot is suitable for handling small workpieces
KR SCARA robot
Powerful, fast, and efficient. Whether it's small part assembly, material handling, or inspection - the new ultra compact KR SCARA robot can provide efficiency and economic benefits. With various integrated media supply systems, you can almost complete any task "out of the box".
KR SCARA robot: committed to improving efficiency in all aspects
The KR SCARA robot makes automation simpler and sustainably improves economic benefits in cost sensitive industries. KUKA's horizontal articulated arm robot is equipped with intelligent functions, providing an attractive complete package: lightweight and slender, while also possessing fast and powerful functions, and high payload, providing automation solutions in narrow spaces.
Can adapt to almost all tasks
The complete solution integrates a media supply system, making it easy for robots to adapt to almost all required applications.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply.
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
| ITEM | VALUE |
| Applicable Industries | Assembly |
| Cutting/Separation |
| Handling |
| Measuring/Inspection |
| Palletizing/packaging |
| Pick-and-place |
| |
| |
| After Warranty Service | Video technical support, Online support,Global official after-sales service |
| Local Service Location | Yes |
| Showroom Location | Yes |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2023 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Motor |
| Brand Name | KUKA |
| Technical service | Video technical support, Online support,Global official after-sales service |
| Weight (KG) | 20kg |
| Axis | 4 axis |
| Payload | 6kg |
| Reach | 500mm |
| Manipulator during operation | Standard |
| Maximum axis speed | 420 °/s 720 °/s 1.1m /s 2000 °/s |
| Repeatability | ±0.02mm |
| IP protection | IP20 |
| Temperature range | Ambient temperature during operation 5 °C to 40 °C (278 K to 313 K) Ambient temperature during stor./transp. -25 °C to 55 °C (248 K to 328 K) |
KR QUANTEC Realizes Automated Stacking of Beer Boxes
At the Fiedler Brewery, robots perform palletizing and unloading tasks that require a lot of physical labor.
