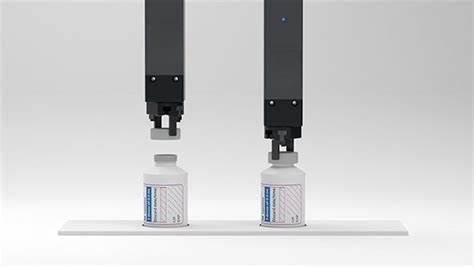

Drive control integrated electric rotary gripper. Adjustable stroke: 0-8mm/IP40
Product Introduction
The control system of the electric gripper is also very important. The control system is mainly responsible for the operation control and monitoring of the electric gripper, including the control of clamping force, clamping position, transmission speed, motion path, and other aspects. When designing and manufacturing control systems for electric grippers, it is necessary to consider different factors such as the shape, size, and weight of the item, and adopt various control technologies to ensure the safety and reliability of operation. For example, precise control of clamping force and position can be achieved by using devices such as sensors, encoders, and control chips; By using control systems such as PLC, automatic control and adaptive operation of electric grippers can be achieved, avoiding safety hazards caused by improper operation or errors.
The electric gripper also has self-protection and alarm functions. Once abnormal situations are detected, such as insufficient clamping force or object movement, it will stop operating in a timely manner and prompt the operator to inspect and repair to ensure the safety of workers and equipment. This self-protection and alarm function can not only effectively avoid safety hazards caused by improper human operation or errors, but also alert operators in the event of an accident, take timely response measures, and reduce the loss and impact of the accident.
About the company
Our guide rail has cooperated with many international well-known robot brands, such as ABB KUKA FANUC Yaskawa UR. The companies involved mainly include palletizing, loading and unloading. The load of the guide rail ranges from 500kg to 5000kg. The length of the guide rail is customized according to the needs of customers. We have made a case that an ABB IRB6700 robot corresponds to 20 CNC machines, and a 50m long guide rail completes the reciprocating motion, loading and unloading of the robot. The number of robots is greatly reduced and the integration cost is saved.
Our company also offers industrial robots at very favorable prices to place orders together at lower prices.
Welcome to Shanghai, China, to investigate our robots and rails!
Company Product Supply
ABB robot
KUKA robot
Yaskawa robot
Fanuc robot
UR robot
Cobot
Guide rail
Cobot made in China
Product specifications
| Order Code | ERG08-23-1L#-C0024-P40-A |
| Adjustable stroke | 0-8 mm |
| Single finger clamping force | 4--23N |
| Opening/closing time | 0.2 s |
| Positional repeatability | ±0.02 mm |
| Maximum load weight | 0.3 Kg |
| Is it supported | Support |
| Usage environment | 5-40 ℃, below 85% RH |
| Operating noise | ＜70 dB |
| Body weight | 0.6 Kg |
| IP GRADE | IP 40 |
| Rated voltage | DC 24±10% V |
| Maximum current | 2 A |
| Rated current | 0.2 A |
| Communication protocol | Modbus RTU (RS485) |
| Complies with international standards | CE,RoHS |
| Vertical allowable static load Fz | 100N |
| Allowable static moment of slider Mx | 1.5 N·m |
| Allowable static moment of slider My | 1.5 N·m |
| Allowable static moment Mz of slider | 1.5 N·m |
Product parameters table
